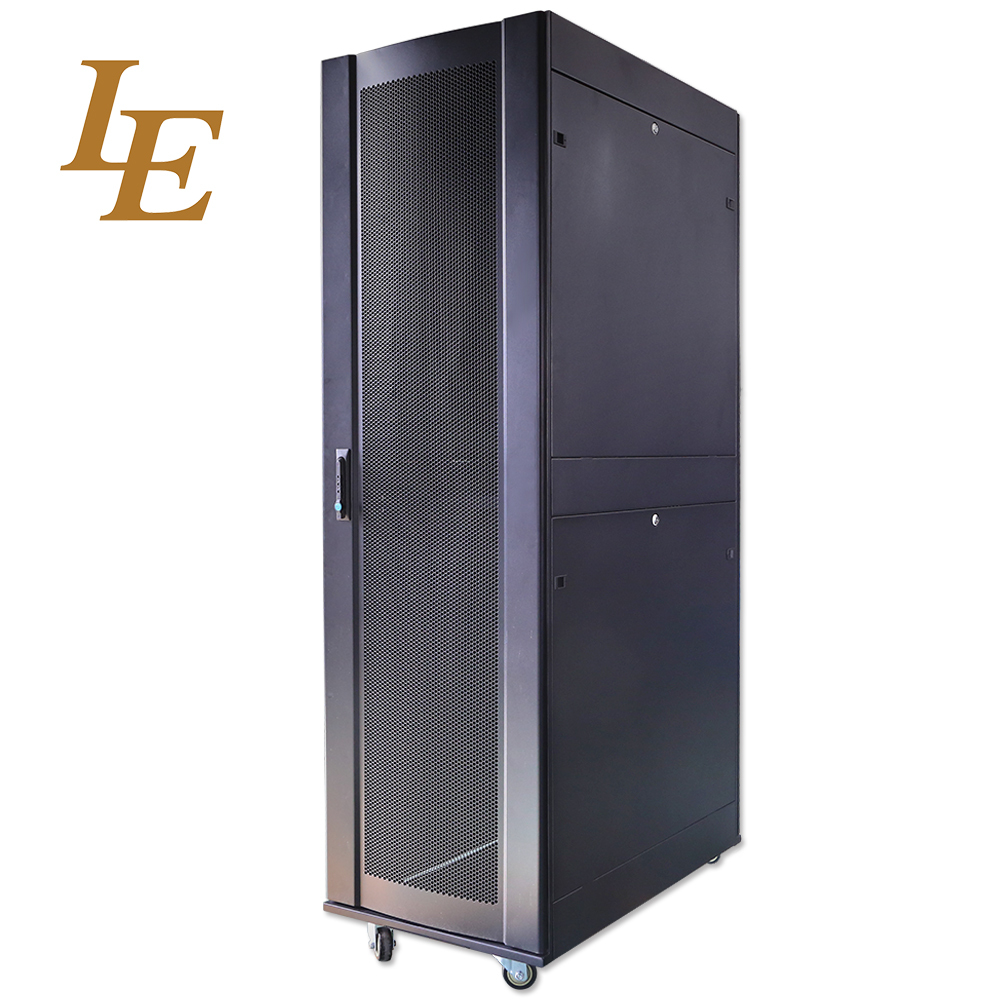

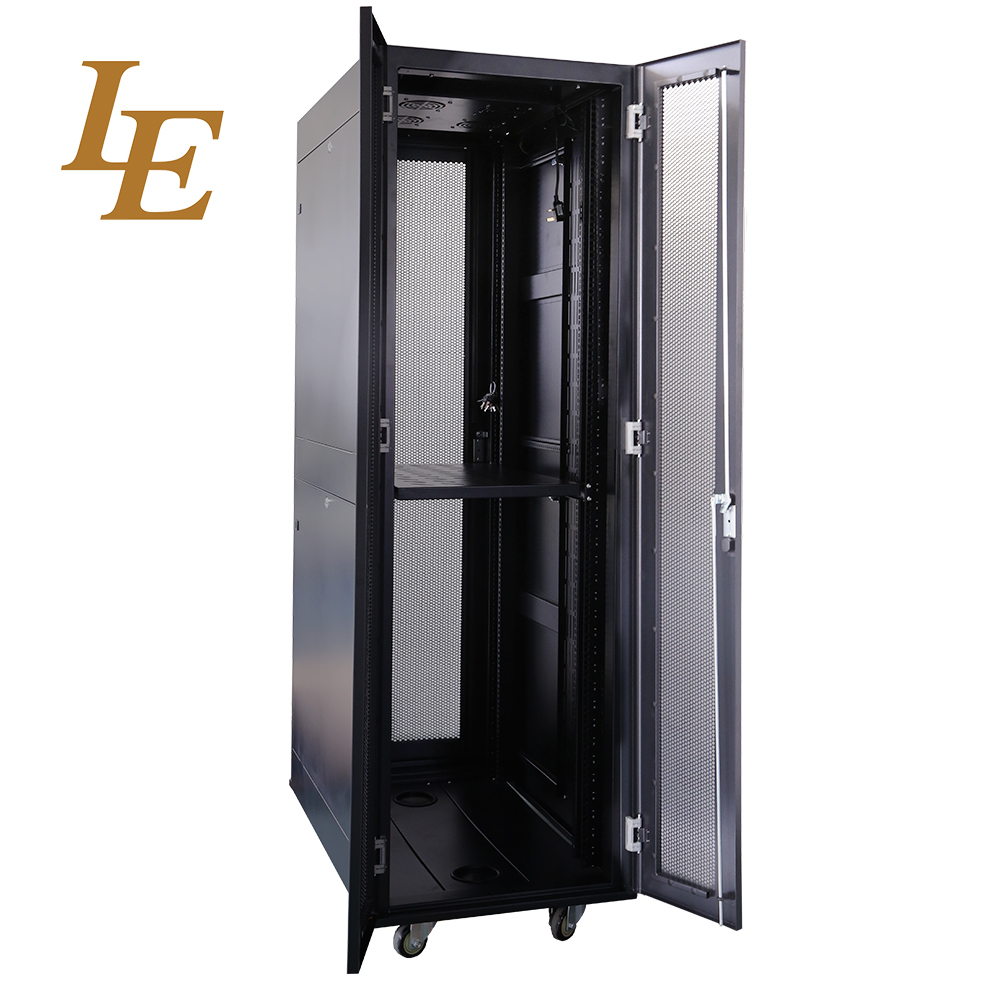

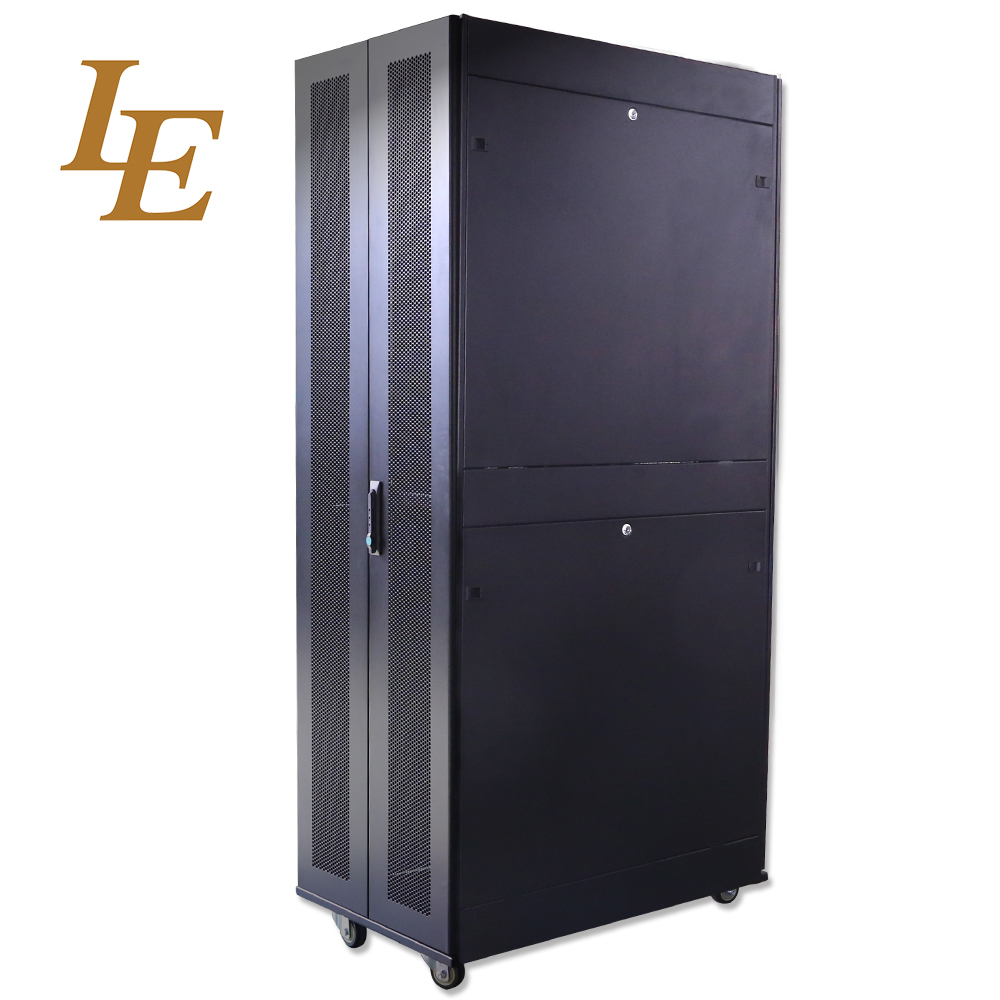

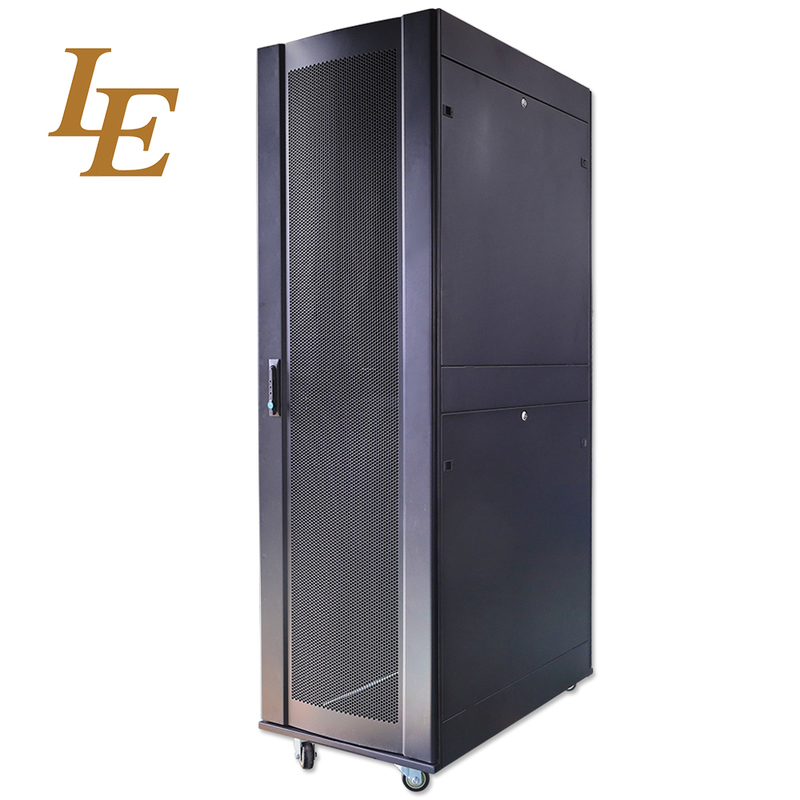

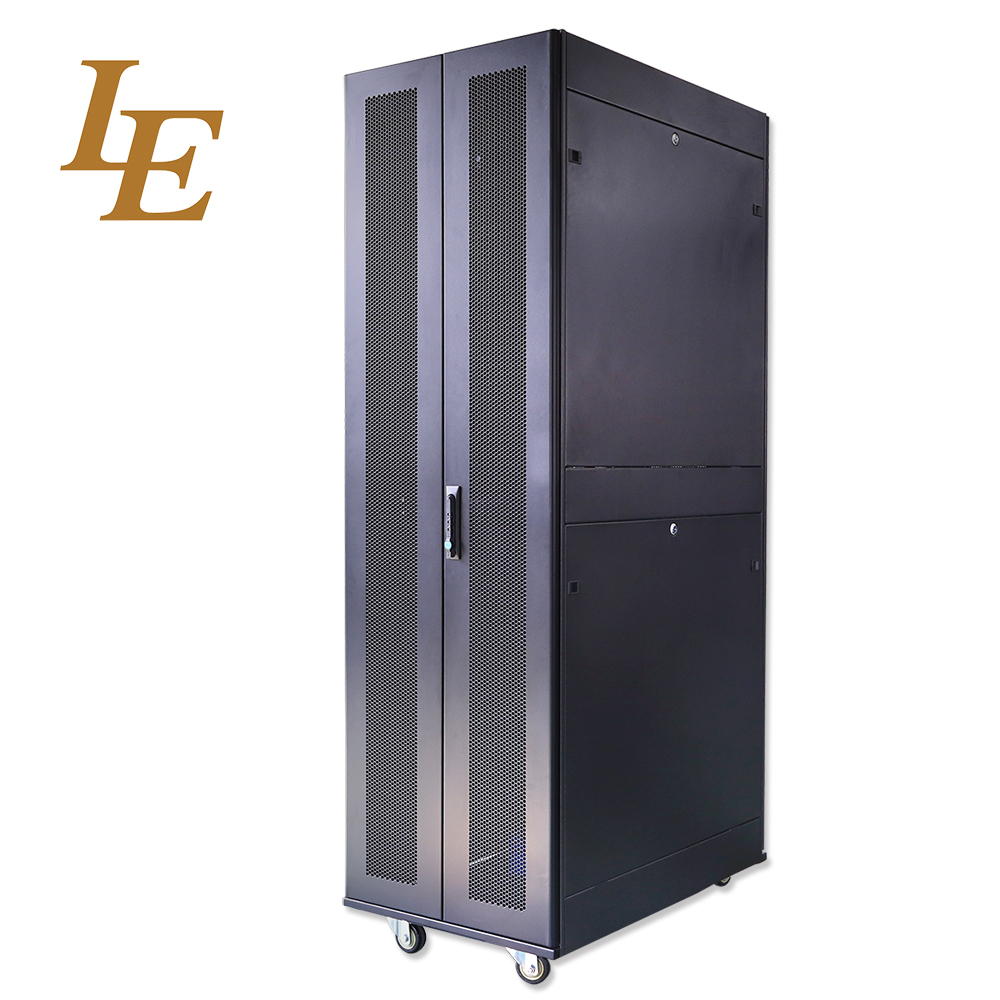

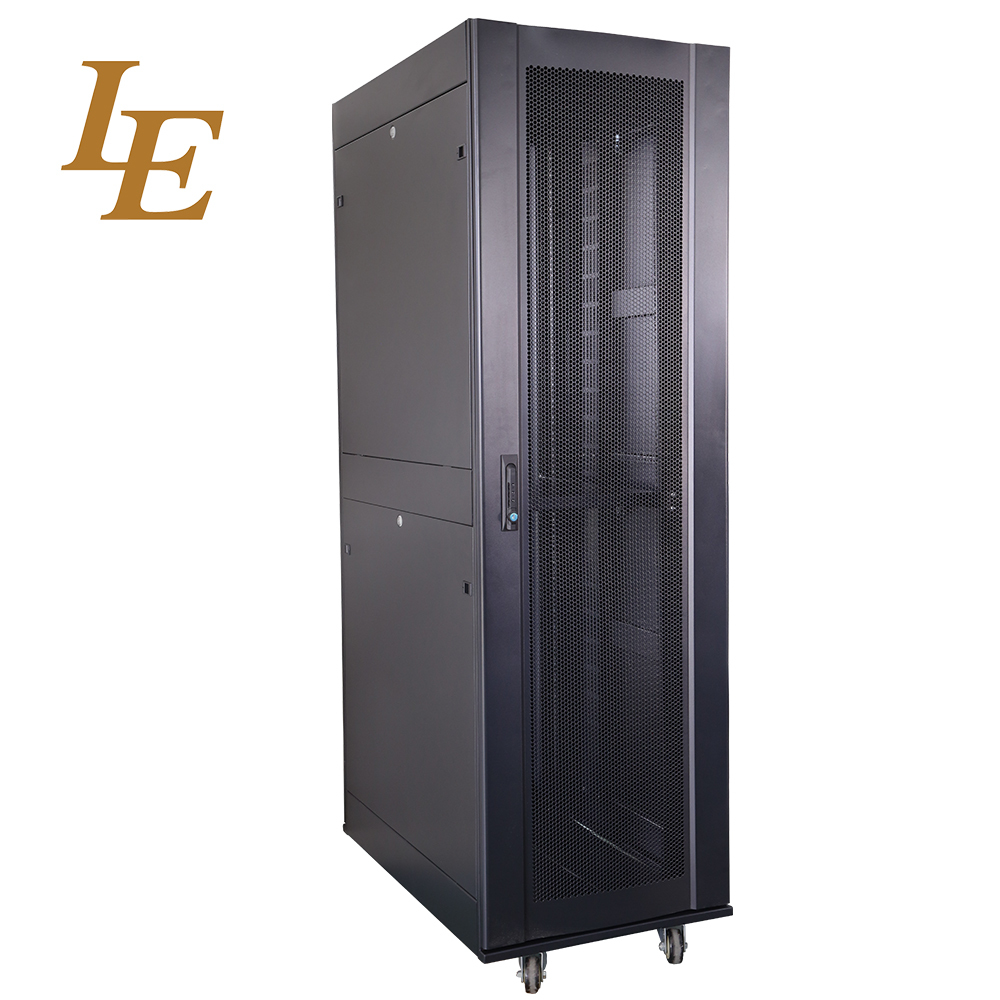

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type

Podstawowe informacje
Place of Origin: Zhejiang, China (Mainland)
Nazwa handlowa: LE or OEM
Orzecznictwo: CE,ROHS
Model Number: universal
Minimalne zamówienie: 15 sztuk/kawałków
Cena: Zbywalny
Szczegóły pakowania: KARTON
Delivery Time: 25-30Days
Zasady płatności: T/t
Supply Ability: 1000 Piece/Pieces per Week Rack PDU
Standard: Zastosuj się w ANS/EIA RS-310-D, IEC297-2, DIN41491, PART1, DIN41491, PART7, ETSI Standard Pakiet: Tak
Dostępność próbki: Dostępne próbki Zdolność OEM: Tak
Dostosowywanie: Tak Nazwa produktu: SC Superior Quality 19 cal 42U 800*1000 mm łuk w kształcie perforowanego typu drzwi


SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 0

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 1SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 2

S/N  LE-SC
Standard

 Comply with ANS/EIA RS-310-D, IEC297-2,

 DIN41491, PART1, DIN41491, PART7, ETSI Standard

Material


 SPCC quality cold rolled steel;
 Mounting profile: Thickness:2.0mm; Others:1.2mm;

Loading Capacity  Static loading: 1500kg (on the adjustable feet)
Degree of protection  IP20
Surface Finish  Degreasing; Pickling; Phosphating; Powder Coated
Product Specification  42U,45U, 47U
 Width: 600mm, 800mm
 Depth: 1000mm, 1100mm, 1200mm

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 3

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 4

Main Structure (600mm Width)


1. Cable entrance

2. Perforated rear door (dual open)

3. Mounting profile

4. Nine-folded profile

5. Mounting angle

6. Supporting corner

7. Castor

8. Top cover

9. Fan tray

10. Side panel

11. Perforated front door (Single open)




SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 5



SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 6

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 7

    Ningbo Latitude International Trade Co.,Ltd is a professional manufacturer specialized in server cabinet, network cabinet, outdoor cabinet, wall cabinet and other communication equipment. For over years, we are always devoting ourselves to research, develop, design and manufacture the indoor and outdoor cabinet products. striving to be effectively dynamic and innovative and always maintained a steady growth although the extremely competitive market, we have the advanced equipment including TruLaser incision machine, TruPunch Presses machine, CNC equipment, spraying paining line and other equipment. In order to assure the stable and high quality of products, we develop the quality control system and operate the manufacturing procession under the International quality system certification.


Our Advantages

1. 100% Manufacturer.

2. Our steel is from Shanghai ShouGang group corporation, higher quality assurance.

3. Japan and Germany CNC machine, professional infrared test equipment, higher precision, more stringent testing.

4. Laser cutting machine and Germany WAGNER auto painting equipment, higher efficiency.

5. 5 ply corrugated with import Meika outside paper carton, glued to avoid scratch, more carefully protection.

6. Professional container loading team, take full advantage of the space and avoid shaking, save your delivery cost.

7. On time delivery rate more than 95%.

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 8SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 9

          1. Q: Are you a factory or trading company?

              A: We are a Factory, Distributor and Trading Company.

          2. Q: Where is your factory located? How can I visit there?

              A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or

              Shanghai airport, from home or abroad, are warmly welcome to visit us!

          3. Q: Can you do OEM?

              A: Yes, we can do OEM products. It's no problem.

          4. Q: How can I get some samples?

              A: We are honored to offer you samples.

          5. Q: How does your factory do regarding quality control?

              A: Quality is priority. We always attach great importance to quality controlling for to the every

              end. Our factory has gained CE,ROHS,SGS authentication.

SC Superior Quality 19 Inch 42U Arc Shaped Perforated Door Type 10
