| S/N |
LE-WS1 |
| Standard |
Comply with ANS/EIA RS-310-D, IEC297-2,
DIN41491, PART1, DIN41491, PART7, ETSI Standard
|
| Material |
SPCC quality cold rolled steel;
Mounting profile: Thickness:1.2mm
Tempered glass: Thickness:5.0mm |
| Loading Capacity |
Static loading:60kg |
| Degree of protection |
IP20 |
| Surface Finish |
Degreasing; Pickling; Phosphating; Powder Coated |
| Product Specification |
27U
Width: 600mm
Depth: 600mm |
| Style |

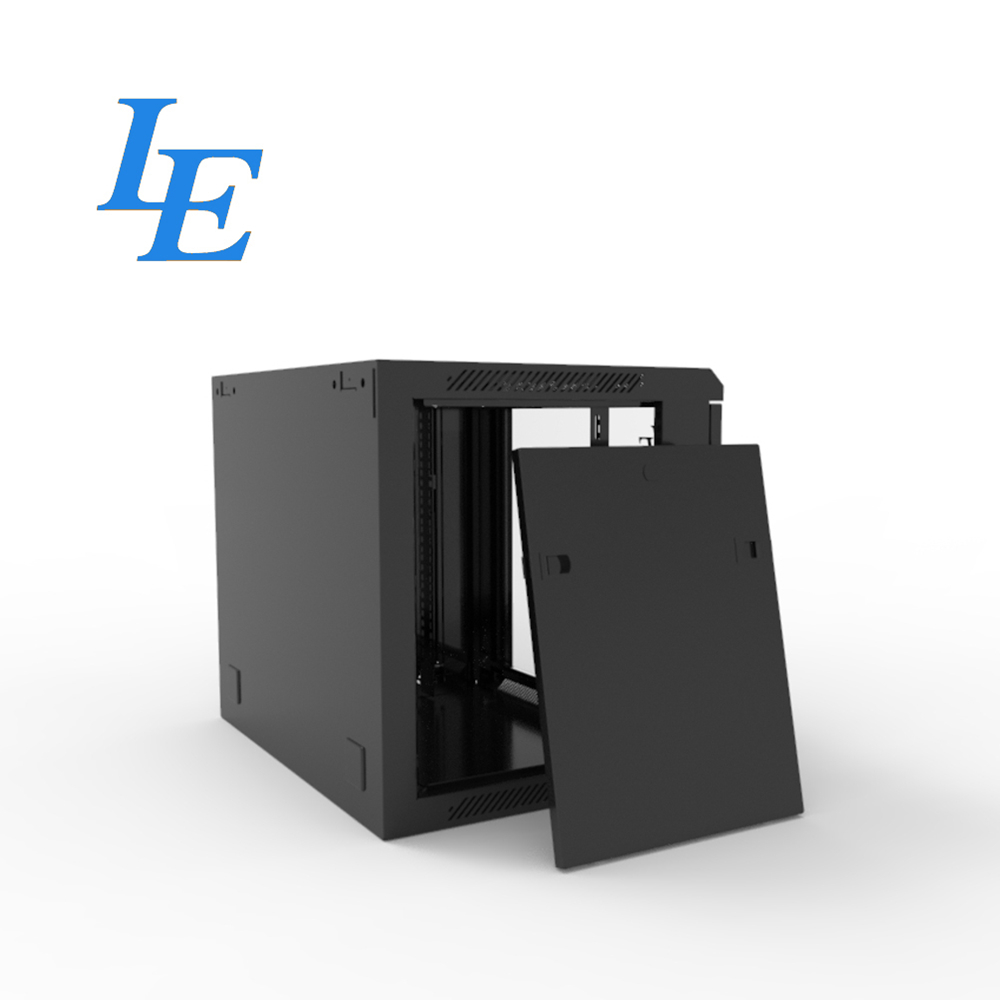

Welded frame, single section, compatible with 19" standard equipments.
Removable side panel, easy to install and lock optional.

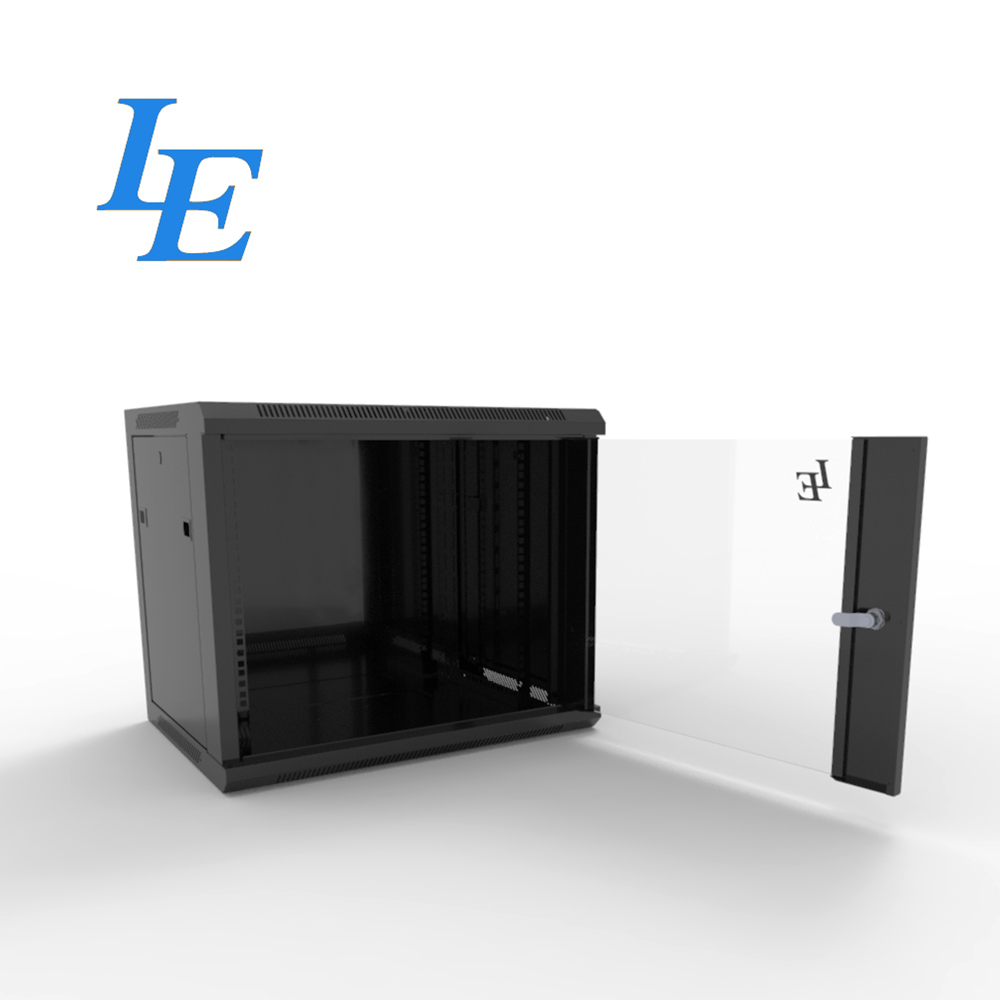

5mm tempered glass front door with over 180 turning degree.
Cable entry on the top and bottom.
L-shaped mounting profile, easy to adjustable on the mounting rail.
Fan cutout on the top, easy to fix on the wall.
|
Our Advantages
1.Germany WAGNER laser cutting machine and car painting equipment, higher efficiency.
2. There are 5 layers of imported Meika corrugated cardboard outside the carton, which are glued to prevent scratches and protected more carefully.
3. Professional container loading team, make full use of space, avoid shaking and save your transportation cost.
4. The on-time delivery rate is over 95%.
| |
Main Structure
1. Installing backboard
2.Mounting profile(L-shaped)
3.Side panel
4.Cable entry plate
5.Top
6.Tempered glass front door
7.Tempered glass front door vented border
|
Ningbo Latitude International Trade Co., Ltd. is a manufacturer specializing in the production of server cabinets, network cabinets, outdoor cabinets, wall cabinets and other communication equipment. Over the years, we have been committed to the research and development, design and manufacture of indoor and outdoor cabinet products.
1. Q: Are you a factory or trading company?
A: We are a Factory, Distributor and Trading Company.
2. Q: Where is your factory located? How can I visit there?
A: Our factory and office is located in Ningbo City, China. You can fly to Ningbo airport or
Shanghai airport, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM products. It's no problem.
4. Q: How can I get some samples?
A: We are honored to offer you samples.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality controlling for to the every
end. Our factory has gained CE,ROHS,SGS authentication.
Factory Showcase
